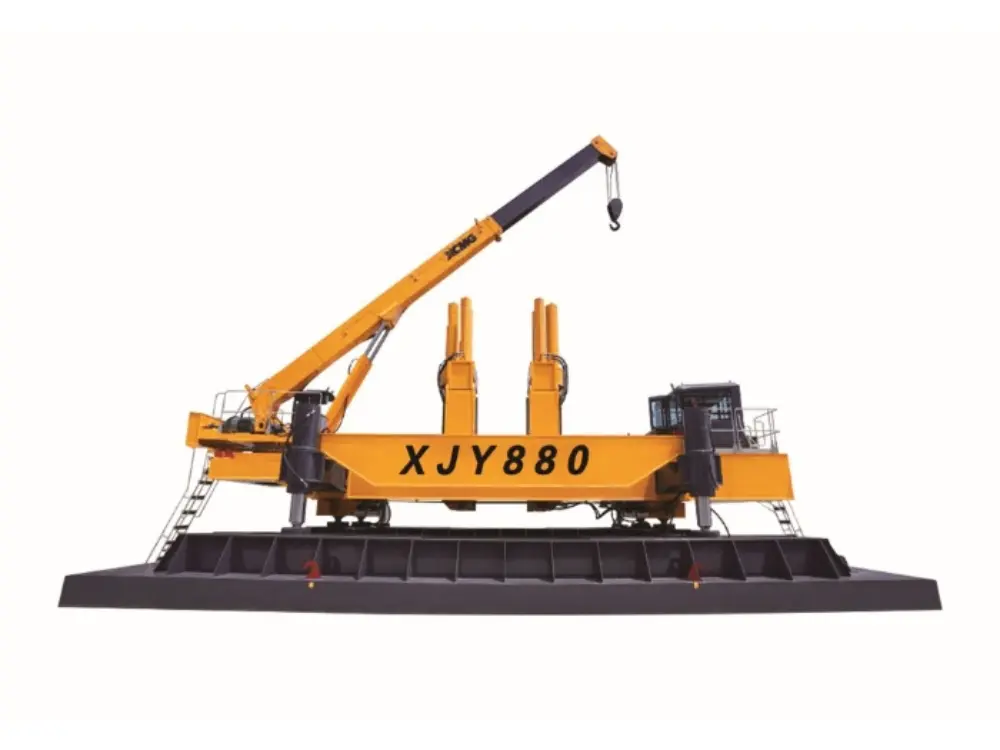

XJY880 Product Introduction
The whole machine is powerful, adopts a 1080-level motor, with a total power of 210kW, and the maximum pile-pressing force can reach 8800kN, which is the largest product of the same tonnage in the industry.
XJY880
| Item | Unit | XJY880 |
|---|---|---|
| Dimensions | – | / |
| Working length | mm | 15200 |
| Working width | mm | 8700 |
| Transport height | mm | 3200 |
| Machine weight | t | 215 |
| Maximum pile driving force | kN | 8800 |
| Minimum pile driving speed | m/min | 1.1 |
| Maximum pile driving speed | m/min | 12.5 |
| Pile driving stroke | m | 1.8 |
| Travel capacity | – | / |
| Longitudinal stroke | m | 3.6 |
| Lateral stroke | m | 0.7 |
| Turning angle | ° | 8 |
| Lifting stroke | m | 1.1 |
| Maximum lifting force | t | 25 |
| Maximum pile length for middle pile | m | 16.5 |
| Ground pressure | – | / |
| Long ship | kPa | 152 |
| Short ship | kPa | 208 |
| Maximum round pile jaw | mm | 600 |
| Maximum square pile jaw | mm | 500 |
| Pile clamp box | – | 6036 |
| Machine power | kW | 3×55+45 |
| Hydraulic system | – | / |
| Flow rate | L/min | 3×210+188 |
| Maximum working pressure | MPa | 27 |
