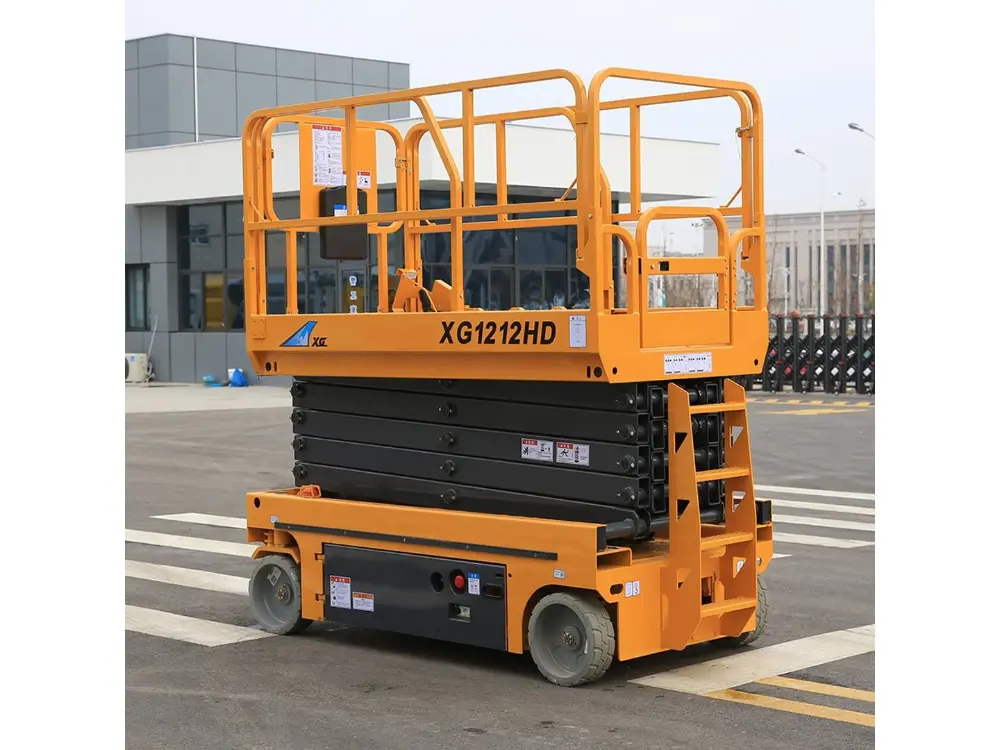

XCMG XG1212HD Mobile Electric Hydraulic Scissor Lifting Platform for Sale

The XG1212HD electric scissor lift offers a working height of 12 meters and features stable lifting performance, efficient mobility, and eco-friendly, energy-saving capabilities, making it suitable for a wide range of aerial work scenarios such as construction, equipment installation, and maintenance.

XG1212HD Electric Scissor Lift Key Features & Advantages:

12m Working Height Capability
Provides a maximum working height of 12m, meeting various elevated work requirements in construction, maintenance, and installation projects.
Efficient Electric Drive System
Features an electric power system with low noise, zero emissions, and high energy efficiency, making it suitable for indoor and environmentally sensitive areas.
Stable Scissor Lifting Structure
The robust scissor mechanism ensures smooth lifting, excellent stability, and safe operation at height.
Compact Design & Flexible Operation
Compact body design with easy maneuverability allows efficient operation in narrow spaces and complex working environments.
Reliable Safety Protection
Equipped with advanced safety features to improve operator protection and ensure stable performance during aerial operations.
Low Maintenance & Cost Efficiency
Electric power reduces maintenance requirements and operating costs while improving long-term reliability.

XCMG XG1212HD Electric Scissor Lift Price

Final price depends on:

Configuration (standard / Pro)
Quantity
Destination port
Transportation methods, etc.

For bulk orders, better pricing is available.

Parameter configuration：

Item		Unit	XG1212HD
Dimension of machine	Length (without ladder)	mm	2477 (2267)
	Width	mm	1190
	Height(platform folded)	mm	2480 (1930)
Wheelbase		mm	1877
Wheel track		mm	1043
Min. ground clearance (Pit protector ascending/descending)		mm	100/20
Dimension of working platform	Length	mm	2277
	Width	mm	1120
	Height	mm	1263
	Extension length of the auxiliary platform	mm	900
Centroid position of machine	Horizontal distance to front shaft	mm	950
Centroid position of machine	Height of centroid	mm	663
Total mass of machine		kg	2900
Max. height of platform		m	10
Min. height of platform		m	1.34
Max. working height		m	12
Min. turning radius (inner wheel/outer wheel)		m	0/2.3
Rated load		kg	320
Payload of extended platform		kg	115
Lifting time		s	50-75
Lowering time		s	43-65
Drive speed(lowered)		km/h	3.2
Drive speed(elevated)		km/h	0.8
Max. gradeability		%	25
Tilt warning angle (side/forward and backward)		°	1.5/3
Lifting / traveling motor	Model	–	–
	Rated power	kW	3.3
	Manufacturer	–	–
Battery	Model	–	T125/3-EV-225
	Voltage	v	24
	Capacity	Ah	240
	Manufacturer	–	Trojan/Leoch
Tire models		–	Traceless and solid /381×127
