XCMG Official XR280D Used Drilling Rig Equipment For Sale

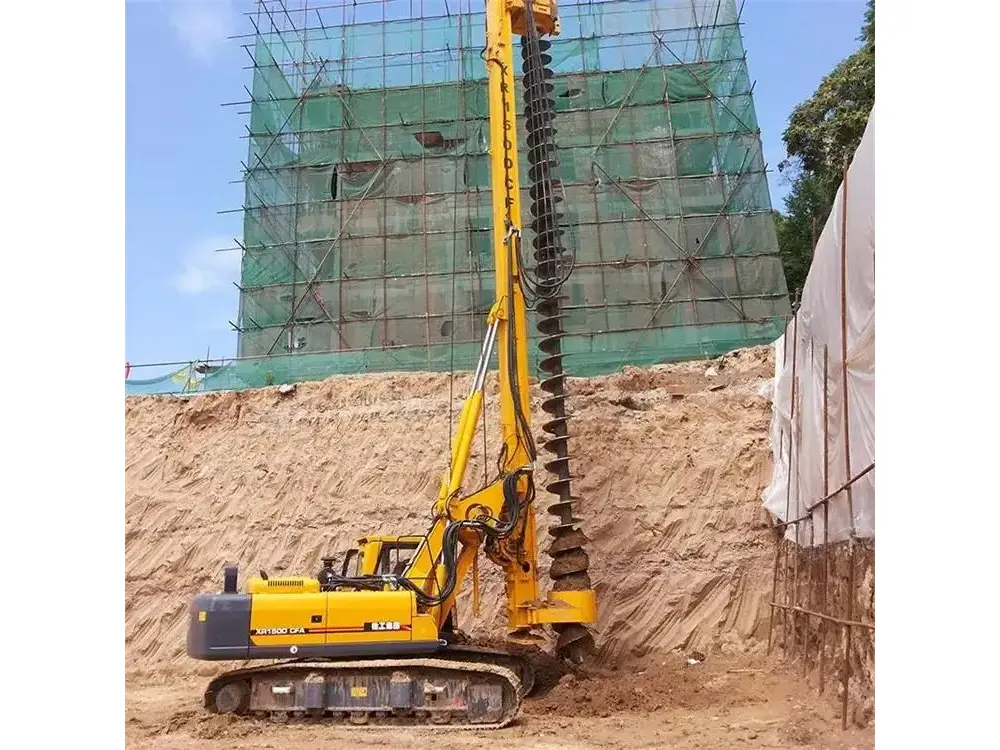

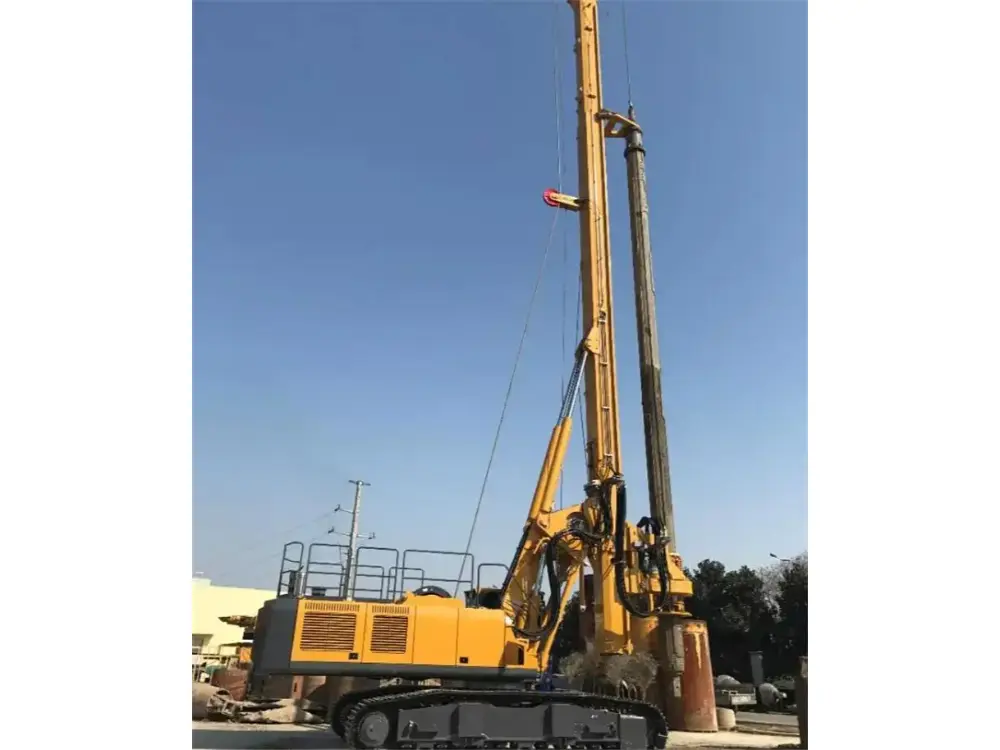

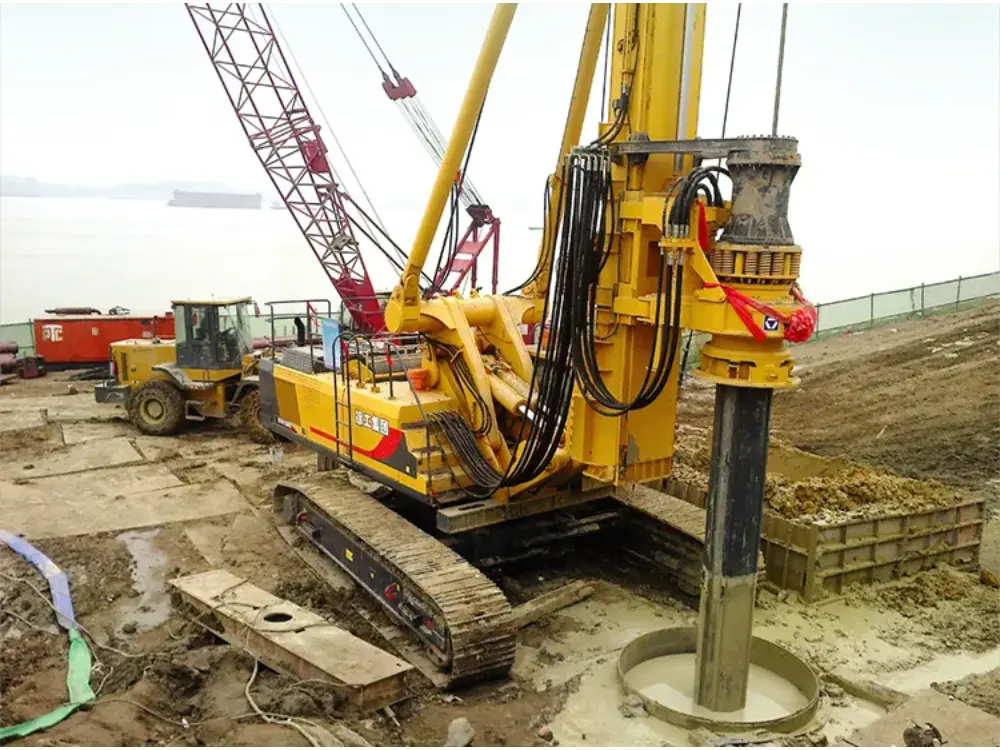

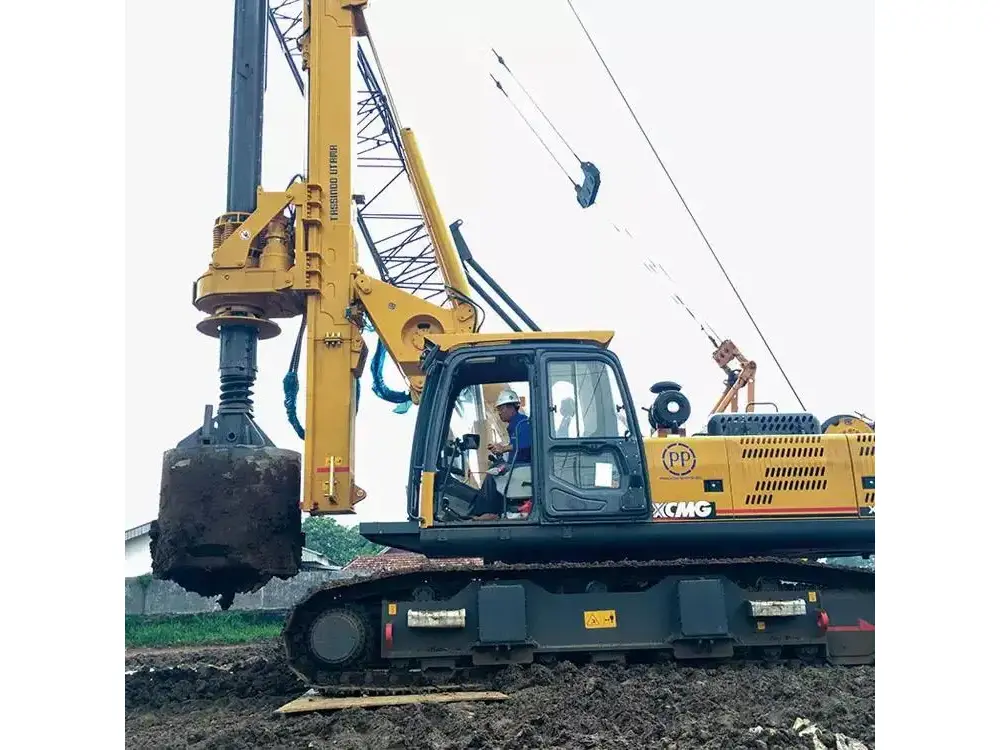

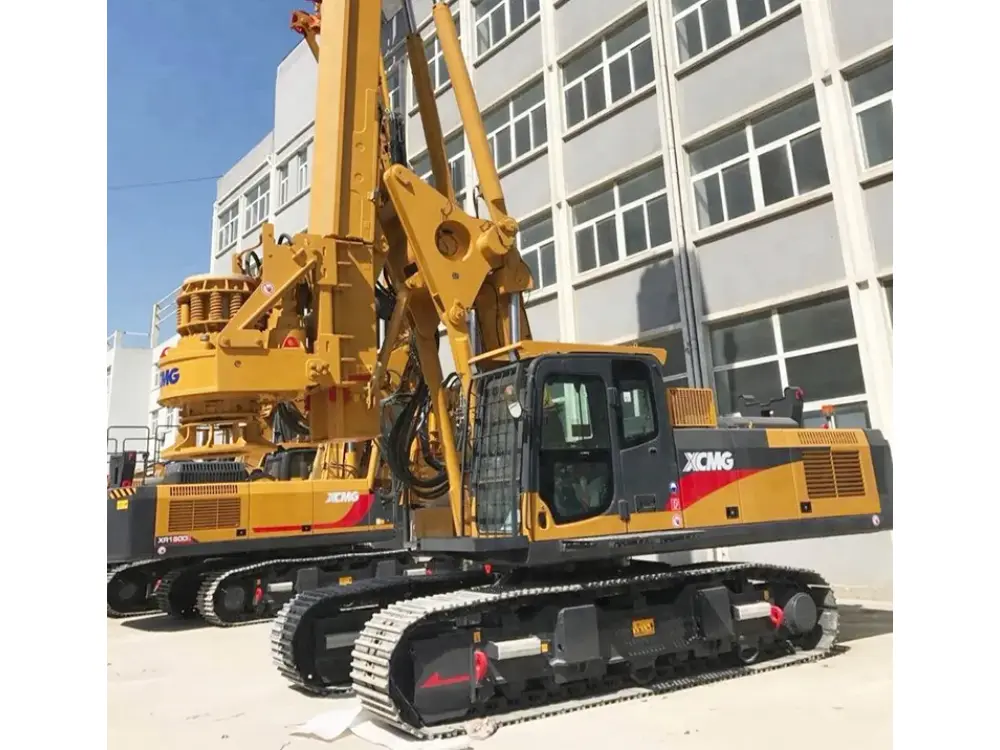

XCMG XR280D Rotary Drilling Rig widely used in boring operation of bored concrete pile in foundation engineering of highway, railways, bridges, ports, docks and high-rise buildings.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
|
Drilling rig dimension in transport condition (L × W × H)
|
mm
|
17380×3500×3540
|
|
|
Weight of overall unit (standard configuration, excluding drilling tool)
|
t
|
84
|
|
|
Engine
|
Model
|
QSM11-C400
|
|
|
Rated power/speed
|
kw
|
298/(2200r/min)
|
|
|
Rotary drive
|
Max. torque
|
kn•m
|
280
|
|
Rotational speed
|
r/min
|
6~22
|
|
|
Crowd cylinder
|
Max. Pushing force
|
kn
|
210
|
|
Max. Pulling force
|
kn
|
220
|
|
|
Max.stroke
|
mm
|
6000
|
|
|
Main winch
|
Max.pulling force
|
kn
|
260
|
|
Max. single-rope speed
|
m/min
|
60
|
|
|
Auxiliary winch
|
Max.pulling force
|
kn
|
100
|
|
Max. single-rope speed
|
m/min
|
65
|
|
|
Drilling mast
|
Left/right inclination of mast
|
°
|
4/4
|
|
Front/back inclination of mast
|
°
|
5/15
|
|
|
Traveling
|
Max. traveling speed of the overall unit
|
km/h
|
1.5
|
|
Max. climbable gradient of the overall unit
|
%
|
35
|
|
|
Crawler
|
Width of crawler plate
|
mm
|
800
|
|
External width of crawler (min.-max.)
|
mm
|
3500~4800
|
|
|
Center distance between two longitudinal wheels of crawler
|
mm
|
5175
|
|
|
Average ground pressure
|
kpa
|
102
|
|
|
Hydraulic system
|
Working pressure
|
MPa
|
35
|
|
Overall weight
|
Max. traveling speed of the overall unit
|
t
|
70
|
|
Dimension
|
Working condition
|
mm
|
8800*4200*21615
|
|
Transportation condition
|
mm
|
16571*3000*3731
|
|
